1*50m Silicone Coated Fiberglass Fabric 260℃ Resistant 510g 2 Sides

Brand Name : Unionfull

Model Number : UPSE-8732D80

Certification : ISO9001:2008; SGS;TUV

Place of Origin : China

MOQ : 500mters

Price : $2.35~3.88/ m2

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30000m2 Per Day

Delivery Time : 10 working days

Packaging Details : One roll in woven bag

Material : Fiberglass fabric

Total Weight : 510g/m2

Width : 1000mm

Color : Red,Blue,Gray,Orange,Yellow,Black

Thickness : 0.43mm

Yarn type : E-glass

Weave : 4HS

Coating side : 1 or 2

Contact Now

1*50m Silicone Rubber 260℃ Resistant 510g 2 Sides Silicone Coated Fiberglass Fabric

Description:

The product are made of high-quality fiberglass with excellent capacity of high temperature and corrosion resistance, coated and rolled with silicone rubber, which is a brand new product with good performance and multiple applications.

Specification:

Item No. UPSE-8732D80
Structure

Silicone rubber+

3732 fiberglass fabric+

Silicone rubber(3 layer)

Total Weight 40g+430g+40g
Thickness 0.45mm/0.018inch
Yarn type E-glass
Weave Satin
Width 1000mm/39inch
Roll length 50m/164ft
Strength 2000/1600 (N/50mm)
Combustible ≤25%
Working Temperature Basic fabric 550 ºC
Silicone coating 260 ºC

Features:

-High-temp. resistance, it can continuously work from -70℃ to 260℃.

-Non-stick after silicone coating
-Weather ability: resistance to ozone, oxygen, sunlight and aging,

-Has constant size due to high strength 2000/1600(N/50mm)
-Good electric insulator, dielectric constant 3-3.2

Main Application:

Electric insulation: Silicone rubber coated fiberglass cloth features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.
- Electrical insulation tapes

- Shrink tunnels

- Welding/fire blankets in industries & security
- Anti-corrosion function: It is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion, resistance, temperature resistance and high strength.

Pictures:

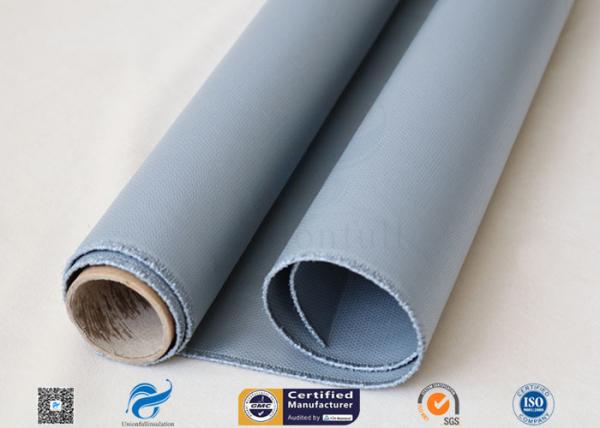

1*50m Silicone Coated Fiberglass Fabric 260℃ Resistant 510g 2 Sides1*50m Silicone Coated Fiberglass Fabric 260℃ Resistant 510g 2 Sides

About Unionfull:

Unionfull Group Ltd , an ISO9001:2008 certified manufacturer who engaged in thermal insulation materials, has grown over the years into an international supplier of high temperature and heat resistant fabrics since its establishment in 2014. We also offer customized service for specific usage with end-use products including insulation jackets, flexible connectors, fabric expansion joints.

Till now, Unionfull has successfully served hundreds of enterprises with good reputation all over the world.
